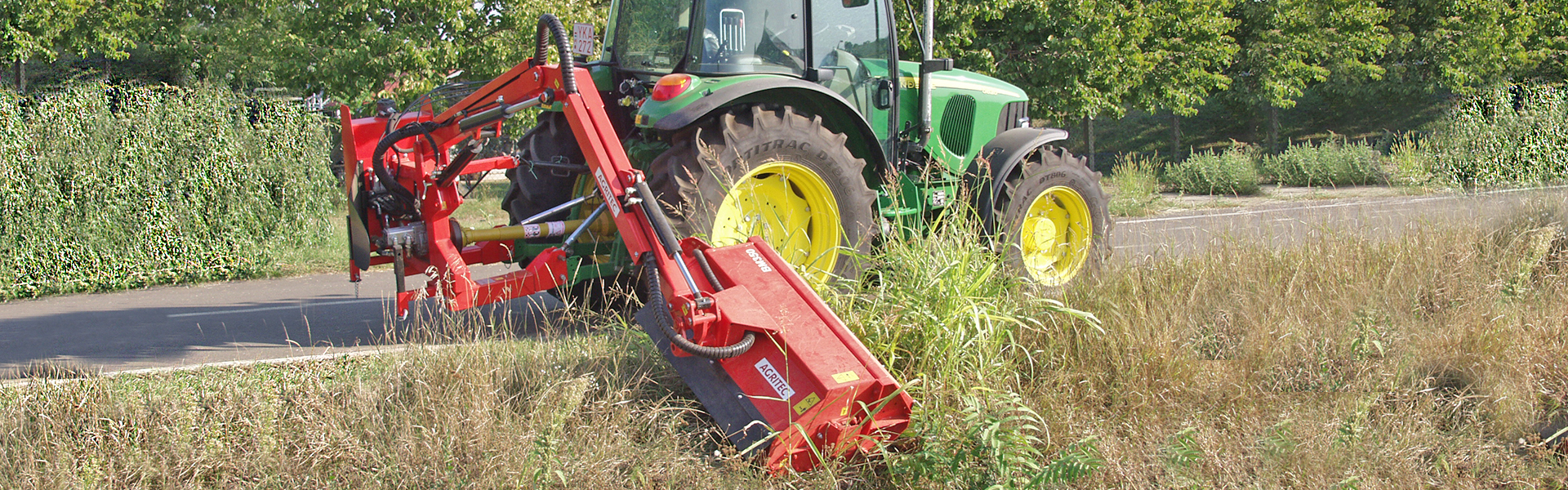

The Class BM Embankment mowers have been designed to cleanly mulch or cut grass, hedges, straw and knotty material up to 310 or 350 cm away using an extension arm. Preferred applications of the BM are the mowing of ditches and embankments, verges along hiking, field and cycle paths, roadsides and green areas as well as the cutting of hedges, bushes and shrubs. Municipal and compact tractors with a power of 45 to 70 hp are particularly suitable as towing vehicles.

A mulching head with Y blades or light hammer flails, pruning shears and a hedge trimmer with triangular blades are available as equipment variants. The mulching head rotates in both directions here. The extension arm can be operated both by Bowden cable control and with an electronic joystick.

The clamping device installed as a standard on the three-point linkage ensures perfect stabilisation of the embankment mower in the working position.

At a glance

Power class
Working width
Attachment system
Attachment position
Traktorspurbreite
Traktorgewicht

Highlights

Oil cooler installed as standard enables continuous operation

With the oil cooler fitted as a standard, the full power of the BM is permanently available. Through the inclusion of the oil cooling system, our embankment mowers are designed for continuous operation and thus ensure safe and reliable use.

Stable working due to additional clamping device on the three-point linkage

The additional clamping device consists of a claw mounted to the lugs for attaching the upper link, and two adjustment spindles connecting the claw and the embankment mower. The forces acting on the tractor and the three-point linkage when the arm is fully extended are absorbed and the embankment mower is stabilised

Various possible applications owing to a wide range of accessories

The BC can be converted for the respective application within a very short time. The following are available

  • Y blade for knotty, stony material,
  • Hammer flail for a clean cutting pattern,
  • hedge trimmer for hedges, bushes and shrubs with a diameter of up to 2 cm,
  • Pruning shears for branches up to 12 cm thick,
  • quick-change mounting set for switching between the mulching head and hedge trimmer as quickly as possible, and
  • An electronic joystick for more precise and easier working.

Product video

Other product features

Extremely smooth running and vibration-free thanks to special electronic balancing of the rotor at full operating speed

Rotor with two directions of rotation

Arm length adjustable up to 300/350 cm

Tension chain as a transport securing device

Tool head with float position

Robust steel housing with rubber splash guard

Collision protection using safety springs

Greasable rear roller/rotor bearings

External skids (mulching head only)


Go to detailed Product brochure

Class BM Embankment mowers

Our quality promise

Since 1985, our company has been developing and producing various attachments for the creation, maintenance and regeneration of green spaces in gardening and landscaping at our company headquarters in Altlußheim near Speyer/Germany.

We place great value on customer satisfaction, which is why we ensure the high quality of our products through state-of-the-art production technology and comprehensive controls, and why we always listen to our customers. In the process, we are constantly developing new ideas or adapting the attachments for towing vehicles, tractors, excavators or track-side equipment. Our customers also benefit from the rapid availability of our products and spare parts. more
